Product overview

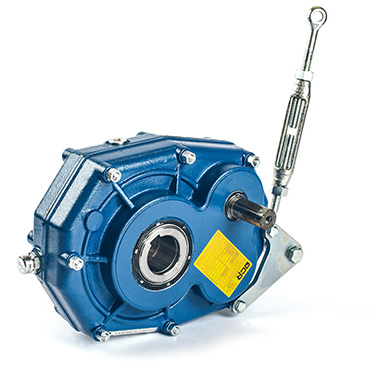

We supply shaft mounted gear units suitable for direct mounting onto the shaft of driven equipment, which can be driven electrically or hydraulically, either by direct mounting of the motor or through a belt drive. A foot-mount option is also available.
Available in eight different sizes, with option for roller holdbacks, the range of shaft mounted gearboxes are all engineered with superior quality alloy steel heat-treated gearing, with high grade cast iron housing. Manufactured by leading gearbox specialists such as OCR, our cutting-edge range of shaft mounted gear units can be used in applications such as conveying and screening. We’re also able to offer shrink disk mounting and motor mounts or adaptors when required, along with bore bushes for any alternative shaft diameters.
| SHAFT MOUNTED GEAR UNIT RANGE | |
|---|---|
| Shaft Mounted Gear Units | Ratios ranging from 4:1 to 25:1 |
| < 13,000Nm output torque capacity | |
| Power capabilities up to 80kW | |
| Bespoke Shaft Mounted Gear Unit | Designed and manufactured to suit customer specification |
Product advantages
- Wide range of ratios and torques available
- Close coupled design, incorporating both foot and motor mount options
- Prestigiously designed to provide a robust, high quality product
- Industry leading products, competitively priced
Sectors
- Agriculture
- Aircraft Ground Maintenance
- Biogas
- Food & Beverage
- Marine & Offshore
- Material Handling
- Mining
- Packaging and Processing
- Water and Wastewater Handling
Product applications
- Conveying
- Screening
